PBG5 Pulse Sources


Click here for hi-res image

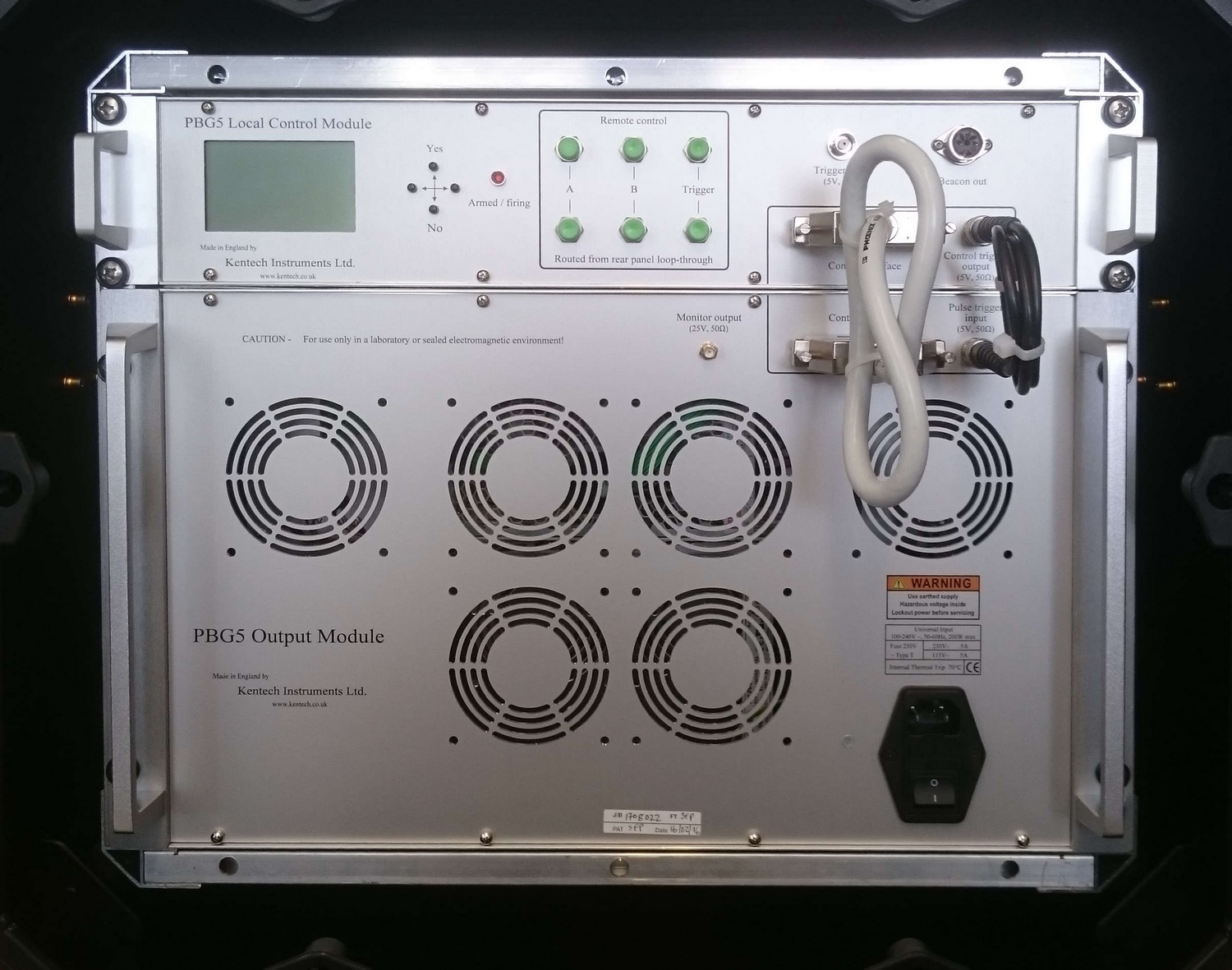

System with Fibre Optic control

Click here for hi-res image and here for manual


This pulser synchonously combines many switch channels to generate a voltage of 24kV into a single 50Ω output at 1kHz, with 130ps risetime.

Pulse shape is a fast rise slow fall unformed pulse. It is suitable for ultrawideband radar.

 8kV/div 200ps/div   8kV/div 100ps/div
